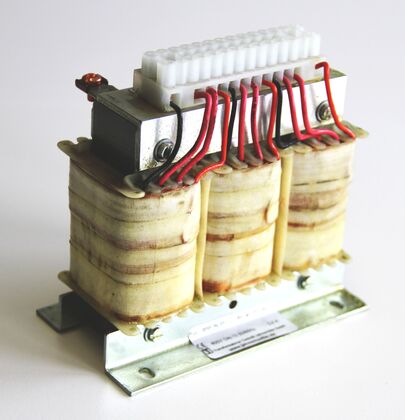

Series SDD
Features
- Throttle to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- Optionally with UL-certified class 155(F) insulation system
- Insulation class T40E
- Currents and inductances according to the table under "Technical information"
- Customised currents and inductances on request!
- Degree of protection IP00
- Optionally available with housing
- Foot bracket for mounting
- Touch-protected terminals in accordance with DGUV V3
- Protection class I
Input voltages
- freely selectable
Output voltages
- freely selectable
Customer-specific power and voltages on request!
Series SDD

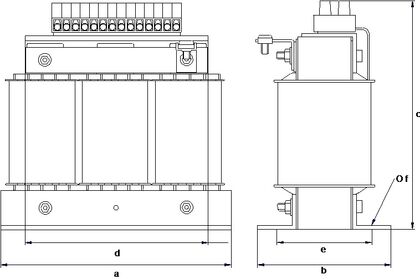

| Type | Current | Inductance | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | mH | a | b | c | d | e | f | CU kg | Total kg | |
| SDD 1,6b-02 | 95 | 56 | 105 | 60 | 48 | 4,8 | 0,8 | 1,8 | ||
| SDD 2b-03 | 125 | 72 | 125 | 84 | 55 | 5,8 | 1,4 | 2,8 | ||
| SDD 2,5b-05 | 155 | 96 | 150 | 122 | 75 | 7,0 | 2,1 | 3,1 | ||
