General information
Technical Information
Series MD
Features
- Chokes according to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- Optionally with UL-certified class 155(F) insulation system
- Currents and inductances according to the table under ‘Technical information’
- Insulation class T40E
- Degree of protection IP00
- Optionally available in housing
- Foot bracket for mounting
- Touch-protected terminals in accordance with DGUV V3
- Protection class I
Input voltages
- freely selectable
Output voltages
- freely selectable
Customer-specific power and voltages on request!
Series MD

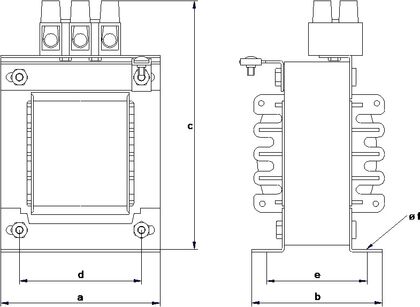

| Type | Current | Inductance | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | mH | a | b | c | d | e | f | CU kg | Total kg | |
| MD 65-5 | 5 | 3,5 | 56 | 50 | 88 | 44 | 38 | 3,6 | 0,15 | 0,75 |
| MD 78-10 | 10 | 2,00 | 66 | 60 | 100 | 50 | 45 | 4,8 | 0,30 | 1,25 |
| MD 84-20 | 20 | 1,50 | 73 | 65 | 105 | 56 | 46 | 4,8 | 0,40 | 1,50 |
| MD 84-30 | 30 | 1,00 | 73 | 80 | 105 | 56 | 60 | 4,8 | 0,50 | 2,10 |
| MD 105-50 | 50 | 0,50 | 90 | 92 | 115 | 65 | 61 | 5,8 | 0,80 | 3,10 |
| MD 120-75 | 75 | 0,40 | 105 | 95 | 158 | 73 | 76 | 5,8 | 1,00 | 4,50 |
| MD 120-100 | 100 | 0,30 | 105 | 104 | 165 | 73 | 84 | 5,8 | 1,30 | 5,40 |
