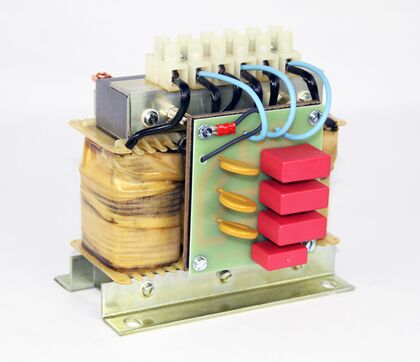

Series KDF
Features
- Throttle to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- Optionally with UL-certified class 155(F) insulation system
- Isolierstoffklasse T40E
- Currents according to the table under "Technical information"
- Customised currents and inductances on request!
- Degree of protection IP00
- Optionally available with housing
- Foot bracket for fastening
- Touch-protected terminals in accordance with DGUV V3
- Protection class I
Input voltages
- freely selectable
Output voltages
- freely selectable
Customer-specific power and voltages on request!
Series KDF

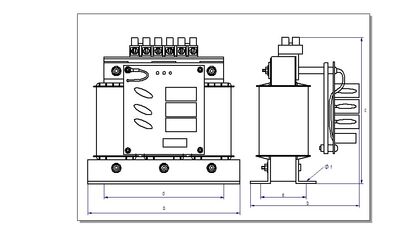

| Type | Current | Inductance | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | mH | a | b | c | d | e | f | CU kg | Total kg | |
| KDF 2a-6 | 6 | 4,4 | 125 | 93 | 125 | 100 | 45 | 4,5 | 0,7 | 2,5 |
| KDF 2b-10 | 10 | 2,8 | 125 | 103 | 125 | 100 | 55 | 4,5 | 0,9 | 3,8 |
| KDF 2,5a-16 | 16 | 1,5 | 155 | 95 | 160 | 130 | 57 | 6,0 | 1,1 | 4,3 |
| KDF 2,5b-20 | 20 | 1,3 | 155 | 110 | 160 | 130 | 72 | 6,0 | 2,0 | 6,0 |
| KDF 2,5b-25 | 25 | 1,1 | 155 | 110 | 160 | 130 | 72 | 6,0 | 2,1 | 6,2 |
| KDF 3b-50 | 50 | 0,8 | 190 | 130 | 190 | 170 | 68 | 8,0 | 3,2 | 9,0 |
| KDF 4a-100 | 100 | 0,3 | 240 | 155 | 250 | 190 | 96 | 11,0 | 6,1 | 22,0 |
| KDF 4b-125 | 125 | 0,25 | 240 | 165 | 250 | 190 | 106 | 11,0 | 6,5 | 23,0 |
| KDF 4c-150 | 150 | 0,22 | 240 | 175 | 260 | 190 | 116 | 11,0 | 7,1 | 24,5 |
