General information
Technical Information

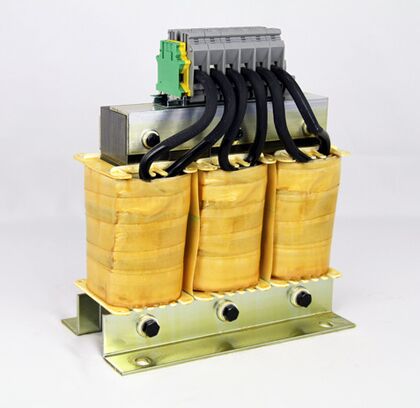

Series KD/ND UL/CSA certified
Features
- Throttle to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- UL/CSA tested and certified chokes (File No. E249508, Vol. 1, Sec. 1)
- Built and tested to UL506 and CSA C22.2 No. 66-1988 standards
- Equipped with UL-certified Class 155(F) insulation system (File No. E251544, Designation 99023535)
- Frequency 50/60Hz
- Currents according to the table under "Technical information"
- For various Uk
- Degree of protection IP00
- Foot bracket for fastening
- Touch-protected terminals in accordance with DGUV V3
- Protection class I
Input voltages
- freely selectable
Output voltages
- freely selectable
Customer-specific power and voltages on request!
Series KD/ND UL/CSA certified

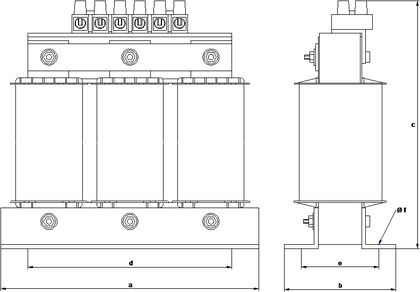

| Type | Current | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | a | b | c | d | e | f | CU kg | Total kg | |
| KD 1,6a-1,5 | 1,5 | 73 | 47 | 110 | 60 | 34 | 4,8 | 0,30 | 1,9 |
| KD 1,6a-2,5 | 2,5 | 73 | 56 | 110 | 60 | 43 | 4,8 | 0,40 | 2,0 |
| KD 1,6a-4 | 4 | 73 | 56 | 110 | 60 | 43 | 4,8 | 0,40 | 2,0 |
| KD 1,6a-6 | 6 | 73 | 47 | 110 | 60 | 43 | 4,8 | 0,30 | 2,0 |
| KD 2b-4 | 4 | 125 | 71 | 130 | 100 | 55 | 5,0 | 0,75 | 2,5 |
| KD 2b-7 | 7 | 125 | 71 | 130 | 100 | 55 | 5,0 | 0,75 | 2,5 |
| KD 2b-12 | 12 | 125 | 71 | 130 | 100 | 55 | 5,0 | 0,75 | 2,5 |
| KD 2b-13 | 13 | 125 | 71 | 130 | 100 | 55 | 5,0 | 0,75 | 2,5 |
| KD 2b-16 | 16 | 125 | 71 | 130 | 100 | 55 | 5,0 | 0,75 | 2,5 |
| KD 2b-17 | 17 | 125 | 71 | 130 | 100 | 55 | 5,0 | 0,75 | 2,5 |
| KD 2,5a-25 | 25 | 155 | 91,5 | 155 | 100 | 71,5 | 8,0 | 0,9 | 4,5 |
| ND 11-25 | 25 | 155 | 76,5 | 155 | 100 | 56,5 | 8,0 | 0,9 | 4,5 |
| KD 2,5b-24 | 24 | 155 | 91,5 | 155 | 100 | 71,5 | 8,0 | 1,5 | 5,8 |
| KD 2,5b-25 | 25 | 155 | 91,5 | 155 | 100 | 71,5 | 8,0 | 1,5 | 5,8 |
| KD 2,5b-50 | 50 | 155 | 91,5 | 155 | 100 | 71,5 | 8,0 | 1,5 | 5,8 |
| KD 3a-30 | 30 | 190 | 81,5 | 180 | 170 | 57,5 | 8,0 | 1,6 | 6,0 |
| KD 3a-35 | 35 | 190 | 81,5 | 180 | 170 | 57,5 | 8,0 | 1,9 | 7,5 |
| KD 3b-42 | 42 | 190 | 91,5 | 180 | 170 | 67,5 | 8,0 | 3,1 | 8,8 |
| KD 3b-45 | 45 | 190 | 91,5 | 180 | 170 | 67,5 | 8,0 | 3,1 | 8,8 |
| KD 3c-55 | 55 | 190 | 101,5 | 180 | 170 | 77,5 | 8,0 | 3,5 | 10,5 |
| ND 30-60 | 60 | 190 | 101,5 | 180 | 170 | 77,5 | 8,0 | 3,5 | 12,0 |
| ND 37-75 | 75 | 190 | 101,5 | 180 | 170 | 77,5 | 8,0 | 3,5 | 12,0 |
| KD 3,5b-105 | 105 | 210 | 115 | 265 | 175 | 95 | 8,0 | 3,5 | 15,0 |
| KD 4-100 | 100 | 240 | 121 | 265 | 175 | 95 | 11,0 | 7,12 | 22,0 |
| ND 45-100 | 100 | 240 | 131 | 265 | 175 | 105 | 11,0 | 7,12 | 22,0 |
| ND 55-125 | 125 | 240 | 141 | 270 | 190 | 115 | 11,0 | 7,5 | 23,0 |
| ND 75-150 | 150 | 240 | 146 | 280 | 190 | 120 | 11,0 | 8,2 | 25,0 |
| KD 4c-170 | 170 | 240 | 141 | 300 | 190 | 115 | 11,0 | 7,6 | 27,0 |
