General information
Technical Information

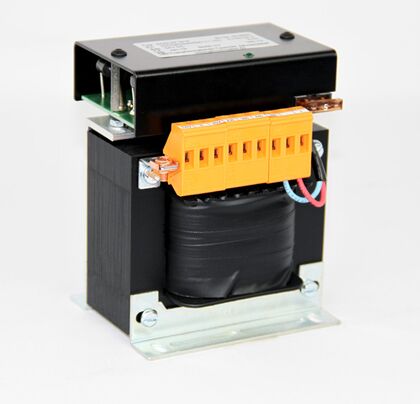

Series EGSUM
Features
- Power supply according to: DIN EN 61558-2-6, VDE 0570 Part 2-6
- Primary voltage: 230V/380V/440V/500V ± 20V
- Secondary voltage: 24V DC
- LED operating indicator
- Protective circuit
- DC output with auto-fuse
- Temperature range -20 °C / +60 °C
- Up to 3 A: Snap-on fasteners
- 5-15 A: Screw fastenings
- Touch-protected terminals in accordance with DGUV V3
Input voltages
- 230V/380V/440V/500V +-20V
Output voltages
- 24V DC
Customer-specific power and voltages on request!
Series EGSUM

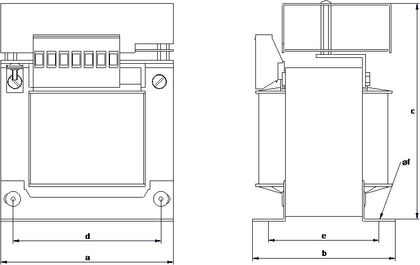

| Type | Current | Dimensions | Weights | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | a | b | c | d | e | f | CU kg | Total kg | ||
| EGSUA 24-3 | 3 | 513002 | 86 | 86 | 114 | 0,35 | 2,2 | |||
| EGSUA 24-5 | 5 | 513003 | 105 | 98 | 135 | 84 | 70 | 5,8 | 0,75 | 3,5 |
| EGSUA 24-7,5 | 7,5 | 513004 | 105 | 100 | 140 | 84 | 70 | 5,8 | 0,85 | 3,9 |
| EGSUA 24-10 | 10 | 513005 | 125 | 118 | 155 | 90 | 95 | 5,8 | 1,05 | 5,7 |
| EGSUA 24-15 | 15 | 513006 | 125 | 135 | 162 | 90 | 105 | 5,8 | 2,00 | 7,3 |
