General information
Technical Information

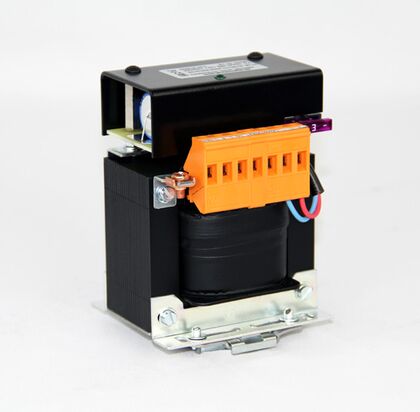

Series EGSUA

Features

  • Power supply according to: DIN EN 61558-2-6, VDE 0570 Part 2-6
  • Primary voltage: 230V/400V +- 15V
  • Secondary voltage: 24V DC
  • LED operating indicator
  • Protective circuit
  • DC output with auto-fuse
  • Temperature range -20 °C / +60 °C
  • Up to 3 A: Snap-on fasteners
  • 5-20 A: Screw fastenings
  • Touch-protected terminals in accordance with DGUV V3

Input voltages

  • 230/400V +-15V

Output voltages

  • 24V DC
Customer-specific power and voltages on request!
Siegel Siegel

Series EGSUA

Type Current Dimensions Weights
A a b c d e f CU kg Total kg
EGSUA 24-3 3 88428 86 86 114 0,35 2,2
EGSUA 24-5 5 88427 105 86 135 84 70 5,8 0,75 3,5
EGSUA 24-7,5 7,5 88513 105 86 140 84 70 5,8 0,85 4,6
EGSUA 24-10 10 10994 125 110 155 90 95 5,8 1,05 5,7
EGSUA 24-15 15 101191 125 120 155 90 105 5,8 2,00 6,8
EGSUA 24-20 20 15631 150 160 180 120 102 5,8 2,30 11,0
