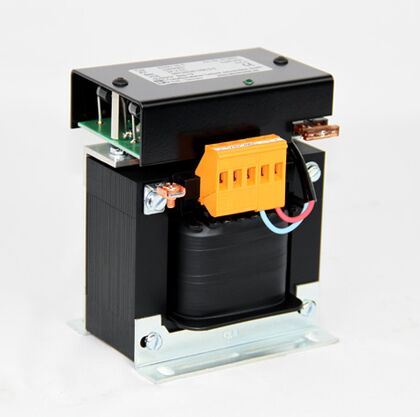

Series EGSU
Features
- Power supply according to: DIN EN 61558-2-6, VDE 0570 Part 2-6
- Primary voltage: 230V/400V
- Secondary voltage: 24V DC
- Currents according to the table under "Technical information"
- LED operating indicator
- Protective circuit
- DC output with auto-fuse
- Up to 3 A: Snap-on fasteners
- 5-20 A: Screw fastenings
- Touch-protected terminals in accordance with DGUV V3
Input voltages
- 230V/400V
Output voltages
- 24V DC
Customer-specific power and voltages on request!
Series EGSU
| Type | Current | Dimensions | Weights | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | a | b | c | d | e | f | CU kg | Total kg | ||
| EGSU 24-1,5 | 1,5 | 512001 | 86 | 70 | 110 | 0,15 | 1,1 | |||
| EGSU 24-3 | 3 | 512002 | 86 | 86 | 114 | 0,35 | 2,2 | |||
| EGSU 24-5 | 5 | 512003 | 105 | 86 | 135 | 84 | 70 | 5,8 | 0,75 | 3,5 |
| EGSU 24-7,5 | 7,5 | 512004 | 105 | 86 | 140 | 84 | 70 | 5,8 | 0,85 | 4,6 |
| EGSU 24-10 | 10 | 512005 | 125 | 110 | 155 | 90 | 95 | 5,8 | 1,05 | 5,7 |
| EGSU 24-15 | 15 | 512006 | 125 | 120 | 155 | 90 | 105 | 5,8 | 2,00 | 6,8 |
| EGSU 24-20 | 20 | 512007 | 150 | 160 | 180 | 120 | 102 | 5,8 | 2,30 | 11,0 |
