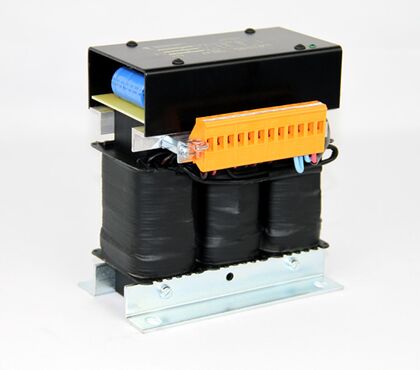

Series DTGS
Features
- Power supply according to: DIN EN 61558-2-6, VDE 0570 Part 2-6
- Primary voltage: 3x230V/380V/440V/500V/570V +-20V
- Secondary voltage: 24V DC
- Currents according to the table under "Technical information"
- LED operating indicator
- Protective circuit
- Fuse up to 20A
- Temperature range -20 °C / +60 °C
- Degree of protection IP00
- Foot bracket for fastening
- Touch-protected terminals in accordance with DGUV V3
- Protection class I
Input voltages
- 3x230V/380V/440V/500V/570V +-20V
Output voltages
- 24V DC
Customer-specific power and voltages on request!
Series DTGS

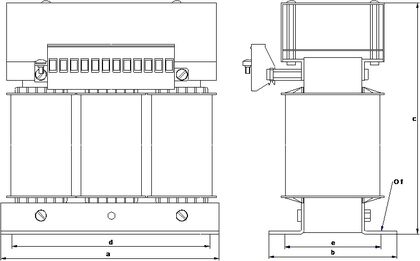

| Type | Current | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | a | b | c | d | e | f | CU kg | Total kg | |
| DTGS 24-10 | 10 | 155 | 120 | 165 | 130 | 70 | 6,5 | 2,6 | 5,8 |
| DTGS 24-15 | 15 | 190 | 130 | 195 | 170 | 70 | 7,5 | 3,1 | 7,4 |
| DTGS 24-20 | 20 | 190 | 150 | 200 | 170 | 88 | 7,5 | 3,6 | 9,6 |
| DTGS 24-25 | 25 | 190 | 160 | 200 | 170 | 80 | 7,5 | 4,6 | 12,1 |
| DTGS 24-30 | 30 | 210 | 160 | 225 | 175 | 95 | 8,0 | 5,6 | 18,0 |
| DTGS 24-40 | 40 | 210 | 160 | 220 | 175 | 95 | 8,0 | 6,0 | 19,0 |
| DTGS 24-50 | 60 | 240 | 210 | 220 | 190 | 118 | 11,0 | 7,3 | 23,0 |
