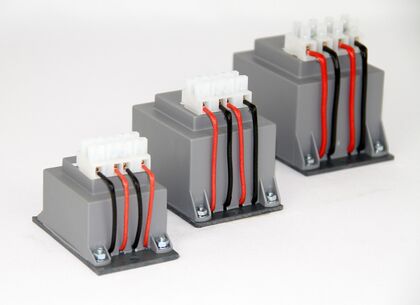

Series 2M
Features
- Throttle to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- Optionally with UL-certified class 155(F) insulation system
- Currents and inductances according to the table under "Technical information"
- Isolierstoffklasse T40E
- IP54 degree of protection
- Mounting with two screws
- Touch-protected terminals in accordance with DGUV V3
- Protection class II
Customer-specific power and voltages on request!
Series 2M
| Type | Current | Inductance | Dimensions | Weights | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | mH | a | b | c | d | e | f | g | h | CU kg | Total kg | |
| 2M 5-4N | 4,0 | 2,5 | 50 | 85 | 63 | 76 | 45 | 4,5 | 78,5 | 25 | 0,15 | 0,45 |
| 2M 6-8N | 8,0 | 2,5 | 60 | 90 | 78 | 87 | 60 | 5,5 | 82,5 | 30 | 0,22 | 1,0 |
| 2M 7-12N | 12,0 | 1,6 | 68 | 105 | 88 | 100 | 67,5 | 5,5 | 97,5 | 34 | 0,36 | 1,4 |
