Series 2EI
Features
- Chokes according to: DIN EN 61558-2-20, VDE 0570 Part 2-20
- Optionally with UL-certified class 155(F) insulation system
- Two separate windings, current and inductance value per winding
- Currents and inductances according to the table under "Technical information"
- Customised currents and inductances on request!
- Insulation class T40E
- Degree of protection IP00
- Optionally available in housing
- Foot bracket for fastening
- Touch-protected terminals in accordance with DGUV V3
- Protection class I
Input voltages
- freely selectable
Output voltages
- freely selectable
Customer-specific power and voltages on request!
Series 2EI

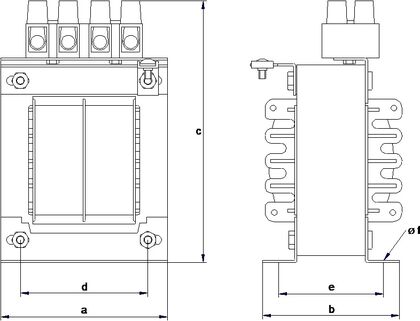

| Type | Current | Inductance | Dimensions | Weights | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | mH | a | b | c | d | e | f | CU kg | Total kg | |
| 2EI 66-5 | 5,0 | 3,2 | 60 | 50 | 70 | 44 | 36 | 3,6 | 0,1 | 0,5 |
| 2EI 66-7,5 | 7,5 | 1,3 | 60 | 60 | 70 | 44 | 46 | 3,6 | 0,15 | 0,6 |
| 2EI 78-7,5 | 7,5 | 2,0 | 66 | 65 | 75 | 50 | 40 | 4,8 | 0,16 | 0,8 |
| 2EI 78-12 | 12 | 1,2 | 66 | 74 | 75 | 50 | 51 | 4,8 | 0,16 | 0,9 |
| 2EI 84-10 | 10 | 1,2 | 78 | 68 | 85 | 56 | 44 | 4,8 | 0,26 | 1,3 |
| 2EI 84-15 | 15 | 1,0 | 78 | 71 | 85 | 56 | 53,5 | 4,8 | 0,3 | 1,5 |
| 2EI 84-20 | 20 | 0,3 | 84 | 75 | 82 | 64 | 46 | 4,8 | 0,3 | 1,5 |
| 2EI 105-10 | 10 | 4,8 | 84 | 89 | 82 | 64 | 60 | 4,8 | 0,35 | 2,0 |
| 2EI 105-15 | 15 | 2,2 | 96 | 121 | 103 | 84 | 53 | 5,8 | 0,45 | 2,4 |
| 2EI 105-20 | 20 | 1,0 | 96 | 95 | 103 | 84 | 72 | 5,8 | 0,5 | 2,8 |
| 2EI 120-25 | 25 | 1,1 | 96 | 103 | 103 | 84 | 86 | 5,8 | 0,7 | 3,6 |
